29" WHEELS // HARDTAIL // 150MM FRONT
🔥 The first-ever Ti Nimble 9 launch was a huge success and we are currently sold out until next time. If you'd like to know when we plan another run, hit the notify me button to get alerts. (No ETA presently for another round.)The Canfield Ti Nimble 9 is the evolution of an icon—our legendary steel hardtail reimagined in titanium for unparalleled ride quality, strength, and agility. Precision-crafted from oversized Ti-3AL-2.5V tubing, this limited-edition frame blends the supple, responsive feel of titanium with the playful, all-mountain capability that has made the Nimble 9 a fan favorite for over a decade.
The Ti Nimble 9 retains the aggressive all-mountain geometry that defines the N9—long, low, and slack with a 150mm fork—but now weighs a full 1.5 pounds less than its steel counterpart, giving riders even more confidence to charge technical descents and power up climbs.
Custom build options. Frame only / Frame + Fork / Frame + Build Kit / Complete
New for the Titanium Nimble 9:
Ti-3AL-2.5V titanium frame – A balance of strength, compliance, and lightweight performance
Refined aesthetics – Brushed raw Ti finish with sand-blasted and laser-etched logos, including the debut of our redesigned Canfield logo
Increased post insertion depth – Accommodates modern long-travel dropper posts
Same legendary sliding dropouts – Adjustable chainstay length for single-speed or geared setups
New XXL sizing – The first Canfield frame available in an XXL
Available sizes: S, M, L, XL, XXLFrame-only starting at: $3,199.99Complete builds starting at: $5,499.99
OPTIONS
COMPLETES / FORKS / BUILDS
Fork Options
Fox 36 Factory Grip X 150mmCane Creek Helm MK II 150mmRockShox Lyrik Ultimate C2 150mmMRP Ribbon LT w/custom ShredKOTE 150mm
GX Build
SRAM GX Shifter & Derailleur, e13 Helix-R 9-50t CassetteCanfield AM Cranks (150/155/160/165/170), 32t ChainringTRP Slate Brakeset, 180/180 rotorsDT Swiss E1900 Wheelset
XO Build
SRAM X01 Eagle Shifter, Derailleur, 10-52t CassetteSRAM XO1 165 Cranks w/32t ChainringSRAM G2 Ultimate Brakeset, 180/180 rotorsAtomik AL30 Wheelset
XT Build
Shimano XT Shifter, Derailleur, Cassette, HG ChainShimano XT 165 Cranks w/32t ChainringShimano XT Brakeset, 180/180 rotorsDT Swiss E1900 Wheelset
XTR Build
Shimano XTR Shifter, Derailleur, Cassette, HG ChainHope Cranks w/32t Chainring (Size and Color Options Available)Hope Brakeset, 180/180 rotorsDT Swiss Carbon EXC 1501 Wheelset
Other
Additional Items Included with all Build Kits
Tires
Maxxis DHF 2.5 & Maxxis Dissector 2.4
Sealant
TruckerCo
Seatpost
SDG Tellis
Saddle
SDG Canfield Limited Edition
Handlebar
e*thirteen Base 800mm
Grips
Lizard Skin w/Canfield logo
Stem
Canfield Special Blend AM
Headset
Cane Creek 40 w/Carbon Spacers
Seat Clamp
Canfield Black Forged
Cable Housing
Jagwire

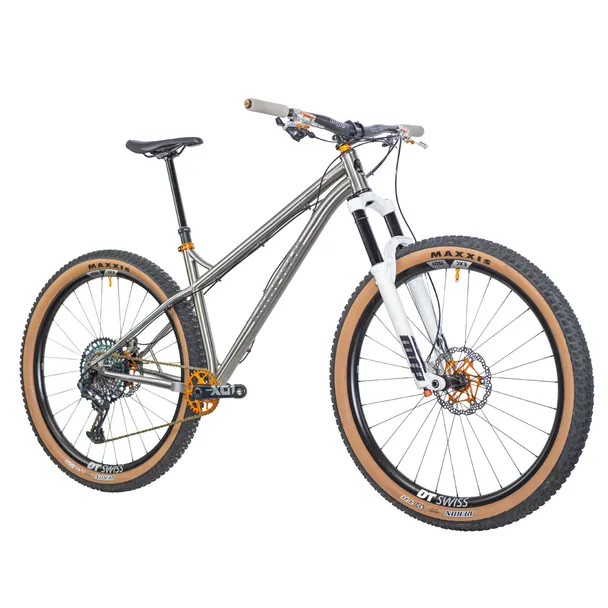

*Photos are for illustration purposes. Final production details and build spec subject to change. Full assembly is required on complete bikes. Complete bike shown is 27.7lbs with air fork.
FRAME FEATURES
29″ All Mountain
3AL 2.5V Titanium
Frame Weight Large 5lbs
Straight 44mm head tube
66° head angle (w/ 150mm fork)
Recommended fork length: 140mm - 160mm, 44mm offset
73mm BSA Threaded BB
ISCG05 chain guide tabs
Max chain ring size 38+ (GO BIG)
Boost 148mm x 12mm rear dropouts, 52mm chain line
Custom sliding adjustable dropouts, Single-speed-able
Adjustable 417-433mm chainstays
Includes IS 160 brake dropout, geared dropouts w/derailleur hanger, rear axle and hardware
31.6mm seat post
34.9 or 35mm clamp size
Deep dropper post insertion, internal routing
81mm (3.19") Tire Opening, 2.5-2.8" tires can fit.
External cable and brake routing
Two water bottle bosses
Canfield Ti Nimble 9 Geo(Based on 150mm fork, 563mm Axle to Crown)
Top Tube Length (Effective)S-592mm / M-616mm / L-640mm / XL-663mm / XXL-686mm
ReachS-425mm / M-450mm / L-475mm / XL-500mm / XXL-525
Front CenterS-747mm / M-772mm / L-797mm / XL-822mm / XXL-846
StackS-646mm / M-650mm / L-660mm / XL-669mm / XXL-678
Standover HeightS-705mm / M-705mm / L-705mm / XL-705mm / XXL-705
Wheel BaseS-1154mm / M-1181mm / L-1210mm / XL-1239mm / XXL-1268
Head Tube AngleS-66° / M-66° / L-66° / XL-66° / XXL-66°
Head Tube LengthS-100mm / M-105mm / L-115mm / XL-125mm / XXL-135mm
Seat Tube Angle (Effective)S-76° / M-76° / L-76° / XL-76° / XXL-76°
Seat Tube Angle (Actual)S-66.3° / M-66.3° / L-66.3° / XL-66.3° / XXL-66.3°
Seat Height vs. Effective Seat Tube Angle500-76.5° / 600-76.2° / 700-75.9° / 800-75.75° / 900-75.6°
Seat Tube LengthS-370mm / M-405mm / L-445mm / XL-490mm / XXL-490
Dropper Post DepthS-250mm / M-285mm / L-325mm / XL-370mm / XXL-370
Chainstay LengthS-417-433mm / M-417-433mm / L-417-433mm / XL-417-433mm / XXL-417-433mm
Bottom Bracket HeightS-325mm / M-325mm / L-325mm / XL-325mm / XXL-325mm
Bottom Bracket DropS-50mm / M-50mm / L-50mm / XL-50mm / XXL-50mm
Geo based on 29" x 2.5" (749mm dia) tires and a 576mm axle to crown fork. (150mm travel, 44mm offset)
SIZING
SIZE
S
M
L
XL
XXL
RIDER HEIGHT
5'2"-5'7"
5'5"-5'11"
5'9"-6'3"
6'1"-6'6"
6'4" +
*This size chart is only a suggestion. Sizing depends on rider height, body type, personal preference and riding style.
