29" WHEELS // 190MM REAR // 190MM FRONT
The anti-gravity gravity machine. Introducing the ONE.2, the first CBF™ downhill/freeride bike from the fun junkies at Canfield. Built around 29-inch wheels and the patented Canfield Balance Formula™ suspension platform, the ONE.2 is a DH weapon engineered to take on the roughest race tracks and biggest bike-park lines with confidence. And thanks to the ultra-efficient CBF™ tuned linkage, it pedals like nothing with 8 inches of travel should to ensure nothing is wasted, whether you’re sprinting across the finish line or into the next jump.
FEATURES• 29” / 27.5” Downhill/Freeride• 7005 aluminum with CNC links• Patented Canfield Balance Formula™ Suspension• 203mm/190mm travel• Internal Cable Routing w/ Interchangeable Ports• Custom CBF Chainstay Protector• 1.5 headtube• 20mm pivot bearings• Replaceable rear derailleur hanger, spare hanger includedFrames include interchangeable cable ports, removable ISCG05 tabs, two rear derailleur hangers, rear axle and custom chainstay protector. Headsets are not included. Headsets are available here.FRAME SPECS• Shock Specs: Metric: 250mm x 70mm (203mm), (20mmX8mm/40mmX8mm hardware)• Recommend fork length: 200mm• Headset: 49.6mm upper/lower• Front derailleur: Not available• Max. chainring size: 34t (36t w/ driveside spacer)• Bottom bracket: 83mm, threaded• Seatpost: 30.9mm, stealth dropper compatible• Seatpost clamp: 35mm• Rear dropouts: 150mm x 12mm, Canfield axle included• 20mm pivot bearings• ISCG 05• Brake mount: IS 160mm• Maximum seatpost insertion: 230mm(M), 240mm(L)
GEOMETRY
Size
Medium
Large
Top Tube Length (Effective)
600mm
629mm
Reach
450mm
475mm
Stack
629mm
638mm
Standover Height
689mm
698mm
Seat Tube Length
415mm
425mm
Wheel Base
1260.5mm
1290mm
Head Tube Angle*
63°
63°
Seat Tube Angle (Effective)
76°
76°
Seat Tube Angle (Actual)
67.8°
67.8°
Chainstay Length
440mm
440mm
Bottom Bracket Drop
22mm
22mm
Bottom Bracket Height (Approximate)**
356.5mm
356.5mm
Head Tube length
115mmm
125mm
Geo based on 29” wheels and 601mm axle-to-crown fork Öhlins DH fork has 620mm axle-to-crown w/ 62.2 HA180/190mm fork w/ 592mm axle-to-crown results in 63.5 HA**(27.5" wheels result in 337.8mm bb height)
SIZING
SIZE
Medium
Large
RIDER HEIGHT
5'5"-5'11"
5'9"-6'3"

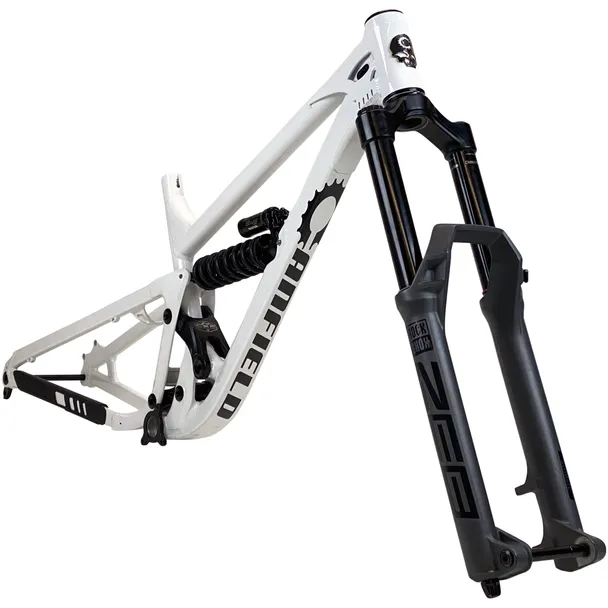

Photos for illustration purposes only. Final component spec may vary based on availability.
