29" WHEELS // HARDTAIL // 130MM FRONT
We say Yelli, you say Screamy. The first hardtail to bring the party to wagon wheels is back with a vengeance. Slice and dice singletrack. Rail pump tracks and jump lines. Load it with frame bags and get lost. Keep up with your spandex-clad friends on the climbs and embarrass them on the descents.
Do whatever you want on the Yelli Screamy, just don’t tell it that it’s a short-travel 29er hardtail.

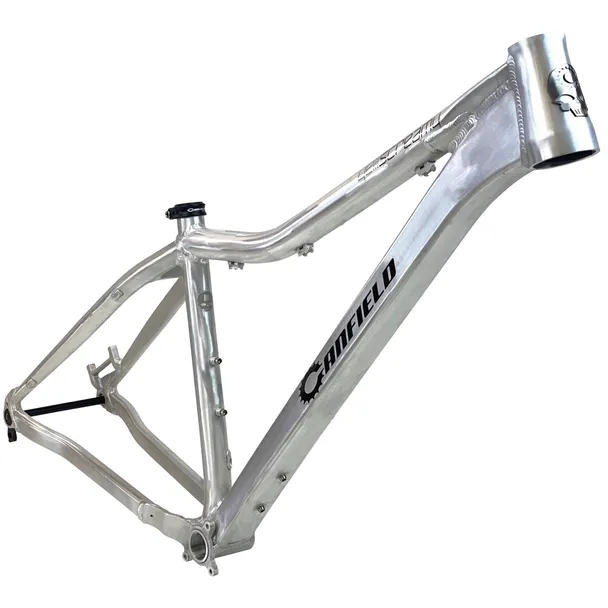

FRAME FEATURES
29” Trail/AM Hardtail
6061-series aluminum
Tapered Headtube (44x56)
Recommended fork length: 120mm - 140mm
Stealth dropper routing
ISCG 05 tabs
73mm BSA Threaded BB
30.9mm seat post (34.9/35mm clamp compatible)
Boost Spacing
Rear Tire Clearance: 80mm/3.15 inches between stays (plus tires not recommended on 29-inch wheels due seat-tube clearance)
Brake mount: PM 160mm
Three water-bottle mounts
Includes seat clamp, derailleur hanger, rear axle and hardware
GEO & SIZING
SMALL
MEDIUM
LARGE
XL
Top Tube Length (Effective)
571
597
624
650
Reach
425
450
475
500
Front Center
736
763
793
820
Stack
630
635
644
649
Standover
677
709
746
769
Wheel Base
1,154
1,181
1,210
1,237
Head Tube Angle*
65.5
65.5
65.5
65.5
Head Tube Length
105
110
120
125
Seat Tube Angle (Effective)
77
77
77
77
Seat Tube Angle (Actual)
76.4
76.4
76.4
76.4
Seat Tube Length
380
420
460
490
Max. Seatpost Insertion
280
320
360
390
Chainstay Length
424
424
424
424
Bottom Bracket Height
316.5
316.5
316.5
316.5
Bottom Bracket Drop
58
58
58
58
Rider Height***
5'2"-5'7"
5'5"-5'11"
5'9"-6'3"
6'1"-6'6"
Geo based on 541mm axle to crown fork, 130mm travel**Recommendation only. Sizing depends on body type, personal preference and riding style.
