March 2026 Availability Update
The following sizes and colors are expected to arrive by late March:
• Small – 2 Blue• Medium – 2 Blue & 1 Red• XL – 1 Red
27.5" WHEELS // 169MM REAR // 170MM FRONT

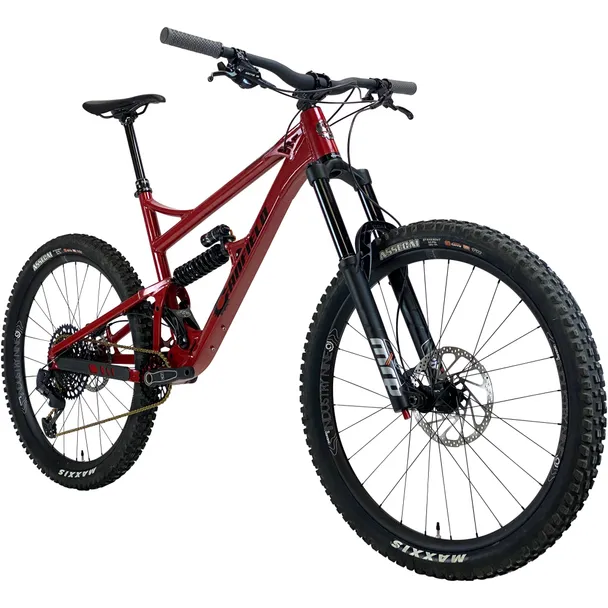

Pedal. Send. Repeat. The Balance is our idea of what an all-mountain bike should be: just as capable of flagrant disregard for line choice and taking big hits in stride as it is of getting you to the top under your own power. Burly enough for bell-to-bell bike-park laps, efficient enough to earn its turns.
BALANCE
COMPONENT OPTIONS
Fork
Cane Creek Helm MKII 170mmRockShox Zeb ULT A3 170mmFox Factory 170mm (Contact for Pricing)
Shock
Cane Creek Kitsuma Coil or AirRockShox Vivid ULT CoilFox Float X2 (Contact for Pricing)
Drivetrain
SRAM GX Shifter, Derailleur, e13 Helix-R 9-50t CassetteSRAM X01 Eagle Shifter, Derailleur, 10-52t CassetteShimano XT Shifter, Derailleur, e13 Helix-R 9-50t Cassette
Cranks
Canfield All Mountain Cranks
Chainring
e*thirteen 32t Round
Brakeset
TRP Trail EVO w/203/180mm Rotors
Wheels
e*thirteen LG1+ Enduro (Contact for Mullet Build)
Tires
Maxxis DHF 2.5 | Maxxis DHR2 2.5
Seatpost
SDG Tellis
Saddle
SDG Canfield Limited Edition
Handlebar
e*thirteen Base 800mm
Stem
e*thirteen Base 35
Seat Clamp
Canfield Black Forged
Complete builds may take 7-10 days to ship depending on in-stock inventory and parts availability.
FEATURES
27.5” All-Mountain / Enduro
Mullet Compatible (160mm 29" fork recommended)
7005 aluminum with CNC links
Patented Canfield Balance Formula™ Suspension
Custom Chainstay Protector
Internal Cable Routing
Tapered headtube
15mm pivot bearings (6902 Max)
Water-bottle mount
Replaceable rear derailleur hanger
Available in Small, Medium, Large and X-Large
FRAME SPECS
Shock Specs: Metric:
169mm travel: 230mm x 65mm (22mmX8mm/36mmX8mm hardware)
Recommend fork length: 170mm (160mm – 180mm acceptable range)
Headset: Tapered 44mm upper/56mm lower
Bottom bracket: 73mm BSA threaded
Crank Length: 155mm (SM), 160mm (MD), 165mm (LG), 170mm (XL)
Seatpost: 30.9mm, stealth dropper compatible
Seatpost clamp: 35mm
Rear dropouts: Boost 148mm x 12mm, Canfield axle included
Rear tire clearance: 70mm/2.76 inches between stays
ISCG tabs: ISCG 05
Brake mount: Post 180mm
Seatpost max insertion: 205mm(S), 225mm(M), 260mm(L), 305mm(XL)
GEO & SIZING
Size
Small
Medium
Large
XLarge
Top Tube Length (Effective)
592mm
613mm
635mm
658mm
Reach
438mm
457mm
476mm
496mm
Stack
606mm
611mm
620mm
629mm
Standover Height
697mm
725mm
743mm
762mm
Seat Tube Length
380mm
410mm
450mm
490mm
Wheel Base
1190mm
1216mm
1241mm
1265mm
Head Tube Angle
64°
64°
64°
64°
Seat Tube Angle (Effective)
75.7°
75.7°
75.7°
75.5°
Seat Tube Angle (Actual)
70.3°
70.3°
70.3°
70.3°
Chainstay Length
420mm
420mm
420mm
420mm
Bottom Bracket Drop
12.4mm
12.4mm
12.4mm
12.4mm
Bottom Bracket Height (*Approximate)
343mm
343mm
343mm
343mm
Head Tube length
115mm
120mmm
130mm
140mm
*Geo based on 565mm axle to crown fork (DVO Diamond 170mm)
SIZING
SIZE
S
M
L
XL
RIDER HEIGHT
5'2"-5'7"
5'5"-5'11"
5'9"-6'3"
6'1"-6'6"
*This size chart is only a suggestion. Every riding style and body is different.
- Photos of bike/spec may vary slightly from actual spec based upon pre-production frame and availability of parts. Any substituted parts will be of equal or greater value than original option listed. Complete bikes ship as a frame and build kit. While frames are prepped, reamed, chased and faced, they do require experienced assembly. If you are not confident in fully assembling and tuning your new Canfield bike, we recommend visiting your favorite local bike shop.
