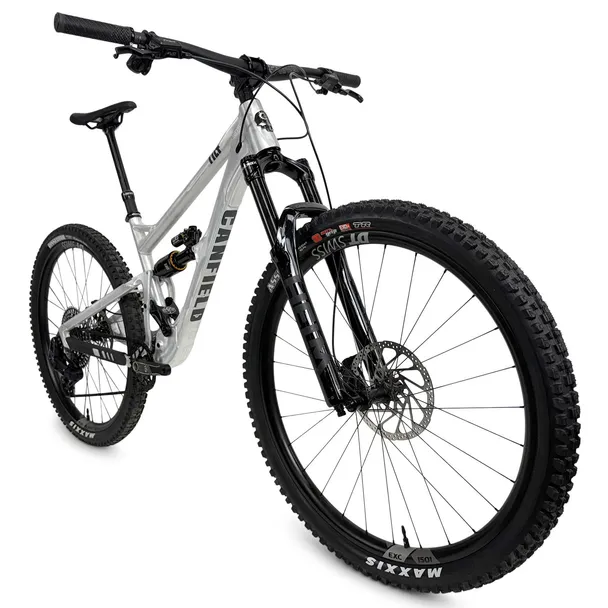

29" OR MX WHEELS // 141MM REAR // 140MM FRONT
We didn't fix what wasn't broken. We made it adjustable. There's a party on the trails and you're invited. The Tilt is an efficient all-rounder that climbs like a mountain goat with a meth habit. But make no mistake — like any bike with a skull on the headtube, it's ready to party when gravity takes over. ★ Tilt V2 — Singletracks Bike of the Year 2024
V3 Tilt Features
UDH compatible rear triangle
Adjustable rear travel via shock stroke — no frame hardware changes required. Three options, one frame.
Three chainstay positions (427 / 435 / 442mm) — move the dropout, change the handling. Head angle, seat angle, and stack stay constant. You're tuning character, not geometry.
Mullet compatible — run 29" or MX (27.5" rear) wheelset with ease
Recommended fork: 130–150mm (optimized around 140mm) — a 130mm fork sharpens the climbing feel; 150mm adds confidence on steeper terrain. Geometry stays within the intended window either way.
Patented Canfield Balance Formula™ (CBF™) suspension — ~120% anti-squat keeps you moving efficiently without locking out, while the axle path and anti-rise are tuned so the bike squats and dives in sync. The result: a platform that pedals honestly and descends without drama.
7005 aluminum frame with CNC 7075 T6 links
Internal cable routing
Forged clamshell bottom bracket assembly
One-piece upper and lower links
Custom CBF Chainstay Protector
Water bottle mount
73mm threaded bottom bracket
Boost 148x12mm rear axle (Canfield axle included)
Tapered headtube: 44mm upper / 56mm lower
30.9mm seatpost, stealth dropper compatible
Seatpost clamp: 35mm
Rear tire clearance: 82mm
Removable ISCG-05 tabs
Post Mount 180mm brake
Rear Travel — Your Call
210x55mm → 141mm Maximum plushness for aggressive terrain
210x52.5mm → 135mm The all-mountain sweet spot
210x50mm → 128mm Snappier, XC-influenced feel for faster days
Swap the shock, not the frame. All three options run the same hardware.
Geo & Sizing
Geo based on 552mm axle-to-crown fork (140mm travel), 210x55 shock, 755mm diameter tire (2.5"). Rider height is a recommendation only — sizing depends on body type, personal preference, and riding style.
Measurement
Small
Medium
Large
XL
Top Tube (Eff.)
566mm
593mm
620mm
646mm
Reach
425mm
450mm
475mm
500mm
Stack
615mm
620mm
624mm
629mm
Standover
701mm
734mm
757mm
783mm
Wheel Base
1,181mm
1,208mm
1,242mm
1,269mm
Head Tube Angle
65°
65°
65°
65°
Head Tube Length
110mm
115mm
120mm
125mm
Seat Tube Angle (Eff.)
77.2°
77.2°
77.2°
77.2°
Seat Tube Length
380mm
420mm
460mm
490mm
Chainstay (27.5" Short)
427mm
427mm
427mm
427mm
Chainstay (29" Short / 27.5" Long)
435mm
435mm
435mm
435mm
Chainstay (29" Long)
442mm
442mm
442mm
442mm
BB Height (Approx.)
350mm
350mm
350mm
350mm
Seatpost Max Insertion
250mm
265mm
305mm
335mm
Rider Height
5'–5'7"
5'7"–5'11"
5'9"–6'3"
6'1"–6'6"
V3 Tilt — Complete Build Component Options
Orders ship with 210x55 shock and 140mm fork unless otherwise requested.
Build
Components
BASE DVO or Marzocchi $3,999.99
DVO Topaz Pro G4 Air + DVO Sapphire 34 D3 SL 29 Blk OR Marzocchi Bomber Air + Marzocchi Bomber Z2 29 Blk SRAM GX Shifter, Derailleur, e13 Helix-R 9-50t Cassette Magura Louise Elite Brakeset + 203/180 Rotors DT Swiss E1900 Alloy Wheelset (Your choice of 29" or MX)
BASE+ $4,999.99
RockShox Super Deluxe Ultimate + Pike Ultimate OR Cane Creek Kitsuma G2 Air + Helm OR (+$300) Fox Float X Factory Air + 36 SL Factory Grip X2 (+$500) SRAM Eagle 70, Shifter, Derailleur, Cassette OR Shimano XT Shifter, Derailleur, Cassette Magura MT5 Brakeset + 203/180 Rotors OR TRP EVO X Brakeset + 203/180 Rotors DT Swiss E1900 Alloy Wheelset (Your choice of 29" or MX)
CORE $5,999.99
RockShox Super Deluxe Ultimate + Lyrik Ultimate Charger OR Cane Creek Kitsuma G2 Air + Helm OR Fox Float X Factory Air + Factory 36 SL Factory (+$300) SRAM Eagle 90, Shifter, Derailleur, Cassette OR Shimano XT Shifter, Derailleur, Cassette Magura MT5 Brakeset + 203/180 Rotors OR TRP EVO X Brakeset + 203/180 Rotors DT Swiss E1700 Alloy Wheelset (Your choice of 29" or MX)
CORE+ $6,499.99
RockShox Super Deluxe Ultimate + Lyrik Ultimate Charger OR Cane Creek Kitsuma G2 Air + Helm OR Fox Float X Factory Air + Factory 36 SL Factory (+$300) SRAM Eagle 90, Shifter, Derailleur, Cassette OR Shimano XT Shifter, Derailleur, Cassette Magura MT5 Brakeset + 203/180 Rotors OR TRP EVO X Brakeset + 203/180 Rotors DT Swiss XMC1500 Carbon Wheelset (Your choice of 29" or MX)
PRO $6,999.99
RockShox Super Deluxe Ultimate + Lyrik Ultimate Charger OR Cane Creek Kitsuma G2 Air + Helm OR Fox Float X Factory Air + Factory 36 SL Factory (+$300) SRAM GX/AXS Eagle Shifter, Derailleur, 10-52t Cassette OR Shimano XT Di2 Shifter, Derailleur, Cassette Magura MT5 Brakeset + 203/180 Rotors OR TRP EVO X Brakeset + 203/180 Rotors DT Swiss XMC1500 Carbon Wheelset (Your choice of 29" or MX)
PRO+ $7,499.99
RockShox Super Deluxe Ultimate + Lyrik Ultimate Charger OR Cane Creek Kitsuma G2 Air + Helm OR Fox Float X Factory Air + Factory 36 SL Factory (+$300) SRAM XO/AXS Eagle Shifter, Derailleur, 10-52t Cassette OR Shimano XTR Di2 Shifter, Derailleur, Cassette Magura MT5 Brakeset + 203/180 Rotors OR TRP EVO X Brakeset + 203/180 Rotors DT Swiss XMC1500 Carbon Wheelset (Your choice of 29" or MX)
Cranks
Canfield All Mountain Cranks Choose from 150–170mm crank options in Black or Silver
Chainring
e*thirteen or Works Components (depending on build) Your choice of 28t, 30t, 32t options and assorted colors
Tires
Front: Maxxis Assegai 2.5 Rear: Maxxis DHR II 2.4 or Maxxis Dissector
Seatpost
SDG Tellis V1 (SM/MD 150mm / LG/XL 170mm) Upgrade options available. Please call for info.
Saddle
SDG Canfield Limited Edition
Bar/Stem
e*thirteen Base 800 Bar + 35mm or 50mm Stem Upgrade options available. Please call for info.
Seat Clamp
Canfield Black Forged
Build It Your Way No two Tilts are exactly alike — and that's the point. If you want to swap components, upgrade parts, or have your BB and headset installed before it ships, just give us a call and we'll make it happen before your order goes out the door. Every Tilt is an extension of you, your riding style, and the trails you call home.Professional assembly available through our Complete Build Service.
NOTE: Full assembly is required on complete bikes. Photos for illustration purposes only. Actual component spec not shown. Component availability subject to change.
