29" WHEELS // HARDTAIL // 150MM FRONT

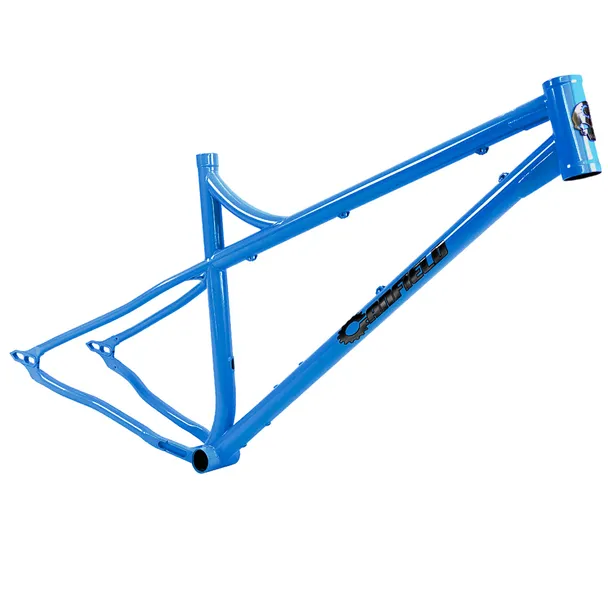

The original hardcore hardtail. Handcrafted in small batches, the Canfield Bikes Nimble 9 is a steel hardtail built to get rowdy. Combining the revered ride quality of 4130 chromoly steel with aggressive all-mountain geometry, the Nimble 9 challenges preconceptions of mountain bikes with both big wheels and rigid rear-ends.
FRAME FEATURES
29″ All Mountain
4130 chromoly steel
Radial-bent seat stays for vertical compliance
Increased reach and shorter seat tube
66° head angle (w/ 150mm fork)
Headset: Straight 44mm upper/44mm lower
Recommended fork length: 140mm - 160mm
Custom sliding Boost 148mm x 12mm rear dropouts, axle included
73mm BSA Threaded BB
30.9mm seat post
34.9 or 35mm clamp size
Adjustable 16.33“ – 16.93” chainstays
Brake mount: IS 160mm
Singlespeed-able
Stealth cable routing
Two water bottle bosses
Includes dropouts/derailleur hanger, rear axle and hardware
Max. chainring size: 34t round / 32t oval
Max. seatpost insertion: 200mm(S), 235(M), 275(L), 320(XL)
Full assembly is required on complete bikes.
Canfield Nimble 9 Geo (Based on 150mm fork, 563mm Axle to Crown)
Size
S
M
L
XL
Top Tube Length (Effective)*
570mm
597mm
625mm
652mm
Reach
425mm
450mm
475mm
500mm
Stack*
634mm
638mm
648mm
656mm
Standover Height*
745mm
780mm
800mm
830mm
Seat Tube Length
370mm
405mm
445mm
490mm
Wheel Base*
1156mm
1183mm
1212mm
1241mm
Head Tube Angle
66°
66°
66°
66°
Seat Tube Angle (Effective)
77°
77°
77°
77°
Chainstay Length
415-430mm
415-430mm
415-430mm
415-430mm
Bottom Bracket Height
325mm
325mm
325mm
325mm
Bottom Bracket Drop
50mm
50mm
50mm
50mm
Head Tube length
100mm
105mm
115mm
125mm
*Geo based on 150mm travel fork. Static measurement (not sagged).
SIZING
SIZE
S
M
L
XL
RIDER HEIGHT
5'2"-5'7"
5'5"-5'11"
5'9"-6'3"
6'1"-6'6"
*This size chart is only a suggestion. Every riding style and body is different.
*Photos are for illustration purposes. Final production details may vary.
