29" WHEELS / 203mm REAR / 203mm FRONT

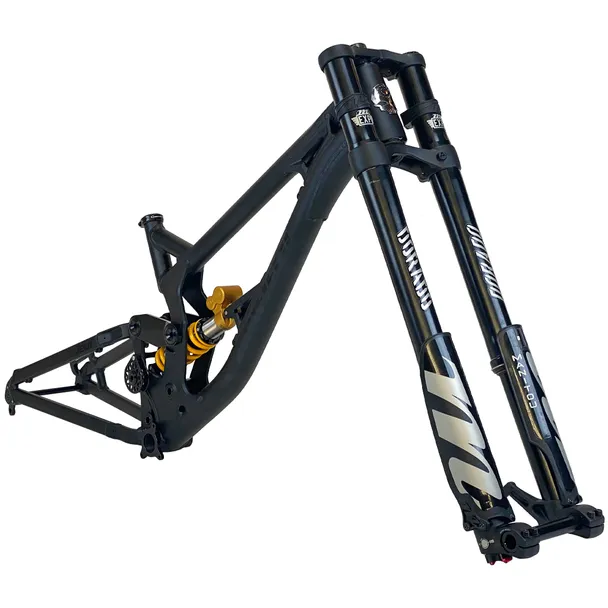

Return of the legend. Introducing the Canfield Jedi 29. One of the most revered downhill bikes is back and faster than ever before. But big wheels are just the beginning. With a redesigned frame, linkage layout and suspension kinematics, the all-new Jedi does what many thought impossible and improves one of the most iconic gravity machines in nearly every aspect.
FEATURES
• 29” Downhill Race
• Formula 1 Suspension
• Vertical Rear Travel: 203mm • Horizontal Rear Travel: 19mm (horizontal) / 64mm (effective)
• External cable routing
• Adjustable pulley wheel guide for optimal chain management with a variety of cassette sizes
• One-piece CNC upper and lower links
• Custom chainstay protector (not shown)
• Custom removable rear fender (can be used as a template to modify most front fenders)
• Custom MRP G5 bashguard
• Replaceable rear derailleur hanger
• Seat Clamp included
• Available in Medium, Large and X-Large
FRAME SPECS
• 7000 series aluminum
• Shock Specs: Metric: 250mm x 75mm (203mm) (20mmX8mm front and rear)
• Recommend fork length: 200mm
• Headset: 44mm upper/56mm lower
• Bottom bracket: 83mm threaded
• Max. chainring size: 38t
• Bottom bracket: 83mm, threaded
• Seatpost: 30.9mm
• Seatpost clamp: 35mm
• Rear dropouts: 157mm x 12mm, Canfield axle included
• 20mm Max pivot bearings
• ISCG 05
• Brake mount: PM 180mm
• Max rotor size: 223mm +
• Maximum seatpost insertion: 133mm(M), 143mm (L), 153mm (XL)
*Photos are for illustration purposes only. Actual build spec not pictured.
GEO & SIZING
SIZE
MEDIUM
LARGE
XL
Top Tube Length (Effective)
610mm
636mm
661mm
Reach
450mm
475mm
500mm
Front Center
825mm
852mm
877mm
Stack
640mm
644mm
644mm
Standover
711mm
711mm
711mm
Wheel Base
1,252mm
1,279mm
1,304mm
Head Tube Angle*
62.5°
62.5°
62.5°
Head Tube Length
115mm
120mm
120mm
Seat Tube Angle (Effective)
76°
76°
76°
Seat Tube Angle (Actual)
67°
67°
67°
Seat Tube Length
405mm
405mm
405mm
Chainstay Length (unsagged)
427mm
427mm
427mm
Chainstay Length (sagged)
443mm
443mm
443mm
Bottom Bracket Height (Approximate)**
351mm
351mm
351mm
Bottom Bracket Drop
24mm
24mm
24mm
Rider Height***
5'5"-5'11"
5'9"-6'3"
6'1"-6'6"
Geo based on 601mm axle-to-crown fork
**Based on 2.5 tires and 601mm axle-to-crown fork
***Recommendation only. Sizing depends on body type, personal preference and riding style.
RECOMMENDED SPRING RATES*
*Ohlins coils use non-standard increments
