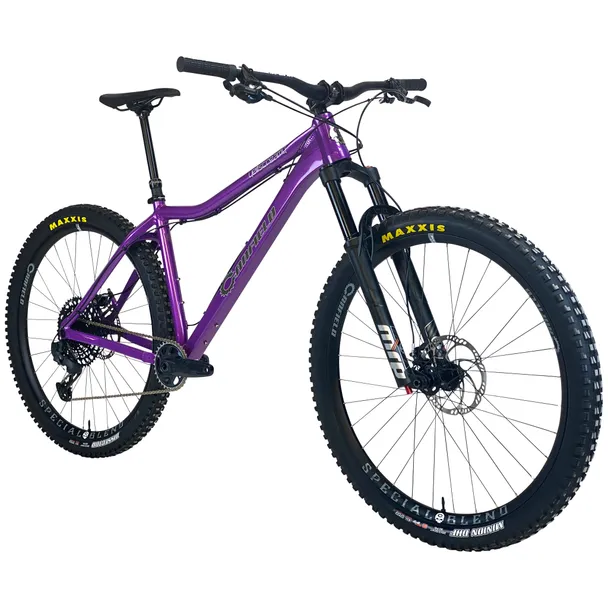

29" WHEELS // HARDTAIL // 130MM FRONT
We say Yelli, you say Screamy. The first hardtail to bring the party to wagon wheels is back with a vengeance. Slice and dice singletrack. Rail pump tracks and jump lines. Load it with frame bags and get lost. Keep up with your spandex-clad friends on the climbs and embarrass them on the descents.
Do whatever you want on the Yelli Screamy, just don’t tell it that it’s a short-travel 29er hardtail.
YELLI SCREAMY
CORE
PRO
Fork
Cane Creek Helm 130mm
Fox 34 SL Factory Grip X 130mm
RockShox Pike Ultimate 130mm
Cane Creek Helm 130mm
Fox 34 SL Factory Grip X 130mm
RockShox Pike Ultimate 130mm
Cranks
Canfield AM
Canfield AM
Chainring
e*thirteen 32t Round
e*thirteen 32t Round
Shifter
SRAM GX Eagle
SRAM X01 Eagle
Derailleur
SRAM GX Eagle
SRAM X01 Eagle
Cassette
e*thirteen Helix-R 9-50t
SRAM X01 Eagle 10-52t
Brakes
TRP Slate T4
TRP Trail EVO
Rotors
TRP 180/160mm
TRP 180/180mm
Wheels
e*thirteen LG1+ Enduro
e*thirteen LG1+ Enduro
Tires
Maxxis Assegai 2.5Maxxis Dissector 2.4
Maxxis Assegai 2.5Maxxis Dissector 2.4
Seatpost
SDG Tellis
SDG Tellis
Saddles
Canfield SDG
Canfield SDG
Bar
ethirteen 800mm
ethirteen 800mm
Stem
e*thirteen Base Stem 35 / 40mm
Enve Alloy MTN Stem 35 / 50mm
Grips
Lizard Skins Charger Evo
Lizard Skins Charger Evo
Seat Clamp
Canfield Black
Canfield Black
*Photos are for illustration purposes. Final production details and build spec subject to change. Full assembly required. Complete builds may take seven to 10 days to ship depending on in-stock inventory and parts availability.
FRAME FEATURES
29” Trail/AM Hardtail
6061-series aluminum
Tapered Headtube (44x56)
Recommended fork length: 120mm - 140mm
Stealth dropper routing
ISCG 05 tabs
73mm BSA Threaded BB
Crank Length: 155mm (SM), 160mm (MD), 165mm (LG), 170mm (XL)
30.9mm seat post (34.9/35mm clamp compatible)
Boost Spacing
Rear Tire Clearance: 80mm/3.15 inches between stays (plus tires not recommended on 29-inch wheels due seat-tube clearance)
Brake mount: PM 160mm
Three water-bottle mounts
Includes derailleur hanger, rear axle and hardware
GEO & SIZING
SMALL
MEDIUM
LARGE
XL
Top Tube Length (Effective)
571
597
624
650
Reach
425
450
475
500
Front Center
736
763
793
820
Stack
630
635
644
649
Standover
677
709
746
769
Wheel Base
1,154
1,181
1,210
1,237
Head Tube Angle*
65.5
65.5
65.5
65.5
Head Tube Length
105
110
120
125
Seat Tube Angle (Effective)
77
77
77
77
Seat Tube Angle (Actual)
76.4
76.4
76.4
76.4
Seat Tube Length
380
420
460
490
Max. Seatpost Insertion
280
320
360
390
Chainstay Length
424
424
424
424
Bottom Bracket Height
316.5
316.5
316.5
316.5
Bottom Bracket Drop
58
58
58
58
Rider Height***
5'2"-5'7"
5'5"-5'11"
5'9"-6'3"
6'1"-6'6"
Geo based on 541mm axle to crown fork, 130mm travel**Recommendation only. Sizing depends on body type, personal preference and riding style.
