29" WHEELS // 138mm REAR // 140/150mm FRONT
There’s a party on the trails, and you’re invited. The Tilt is an efficient all-rounder that climbs like a mountain goat with a meth habit. But make no mistake—like any bike with a skull on the headtube, it’s ready to party when gravity takes over.

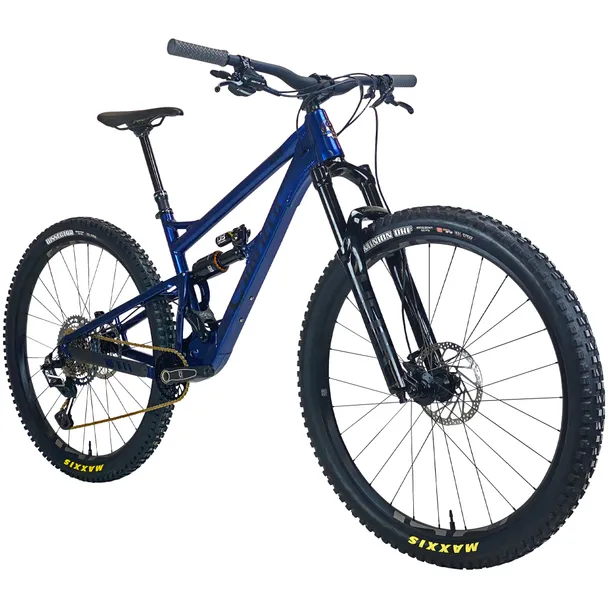

TILT
COMPONENT OPTIONS
Fork
Cane Creek Helm MK II 140m Fox 36 SL Factory Grip X 140 RockShox Pike Ultimate C2 140mm
Shock
Cane Creek Double Barrel Kitsuma Air Fox Float X Factory Air RockShox Super Deluxe Air
Drivetrain
SRAM GX Shifter, Derailleur, e13 Helix-R 9-50t CassetteSRAM X01 Eagle Shifter, Derailleur, 10-52t CassetteShimano XT Shifter, Derailleur, e13 Helix-R 9-50t Cassette
Cranks
Canfield All Mountain Cranks (150, 155, 160, 165, 170)
Chainring
e*thirteen 32t Round
Brakeset
TRP Slate T4 w/180mm Rotors or Magura MT Thirty / 4-Piston w/180mm Rotors
Wheels
e*thirteen LG1+ Enduro
Tires
Maxxis DHF 2.5 & Maxxis Dissector 2.4
Seatpost
SDG Tellis
Saddle
SDG Canfield Limited Edition
Handlebar
e*thirteen Base 800mm
Stem
e*thirteen Base Stem
Seat Clamp
Canfield Black Forged
Complete builds may take 7-10 days to ship depending on in-stock inventory and parts availability.
GEO & SIZING
Small
Medium
Large
XL
Top Tube Length (Effective)
566mm
593mm
620mm
646mm
Reach
425mm
450mm
475mm
500mm
Front Center
746mm
773mm
800mm
827mm
Stack
615mm
620mm
624mm
629mm
Standover
697mm
730mm
762mm
779mm
Wheel Base
1,170mm
1,198mm
1,225mm
1,252mm
Head Tube Angle*
65°
65°
65°
65°
Head Tube Length
110mm
115mm
120mm
125mm
Seat Tube Angle (Effective)
77°
77°
77°
77°
Seat Tube Angle (Actual)
69.2°
69.2°
69.2°
69.2°
Seat Tube Length
380mm
420mm
460mm
490mm
Chainstay Length
425mm
425mm
425mm
425mm
Bottom Bracket Height (Approx.)
343mm
343mm
343mm
343mm
Bottom Bracket Drop
32mm
32mm
32mm
32mm
Rider Height
5'2"-5'7"
5'5"-5'11"
5'9"-6'3"
6'1"-6'6"
*Geo based on 552mm axle-to-crown fork with 140mm travel.**Based on 2.5 tires and 552mm axle-to-crown fork.***Recommendation only. Sizing depends on body type, personal preference, and riding style.
Seat Height vs. Effective Seat Tube Angle
600mm = 77.5 °
700mm = 76.3 °
800mm = 75.4 °
FEATURES• 29” Trail/All-Mountain• Patented Canfield Balance Formula™ Suspension• Internal cable routing• Forged clamshell bottom bracket assembly• Redesigned rear-triangle with forged one-piece vertical stays• One-piece upper and lower links• Custom CBF Chainstay Protector• Water-bottle mount • Replaceable rear derailleur hanger
FRAME SPECS• 7005 aluminum with 7075 T6 CNC links• Internal cable routing with interchangeable machined ports• Shock Specs (Metric): -138mm travel 210mm x 55mm (20mmX8mm/40mmX8mm hardware)• Recommend fork length: 130mm – 150mm• Tapered Headtube 44mm upper/56mm lower • Recommended fork offset: 44mm• 15mm pivot bearings (6902 Max)• Seatpost: 30.9mm, stealth dropper compatible• Seatpost clamp: 35mm• Rear dropouts: Boost 148mm x 12mm, Canfield axle included• Max rear tire size: 29x2.5/27.5x2.8• Removable ISCG tabs: ISCG 05• Brake mount: Post Mount 180mm • Bottom bracket: 73mm threaded• Crank Length: 160mm (SM), 160mm (MD), 165mm (LG), 165mm (XL)• Seatpost max insertion: 250mm(S), 265mm(M), 305mm(L), 340mm(XL)• Weights (medium): -Frame w/ hardware: 7.6 pounds -Frame w/ shock: 8.9 pounds -Complete (carbon wheels, air shock/fork): 31.8 pounds
NOTE: Full assembly is required on complete bikes. Photos for illustration purposes only. Actual component spec not shown.
