29" WHEELS // HARDTAIL // 150MM FRONT

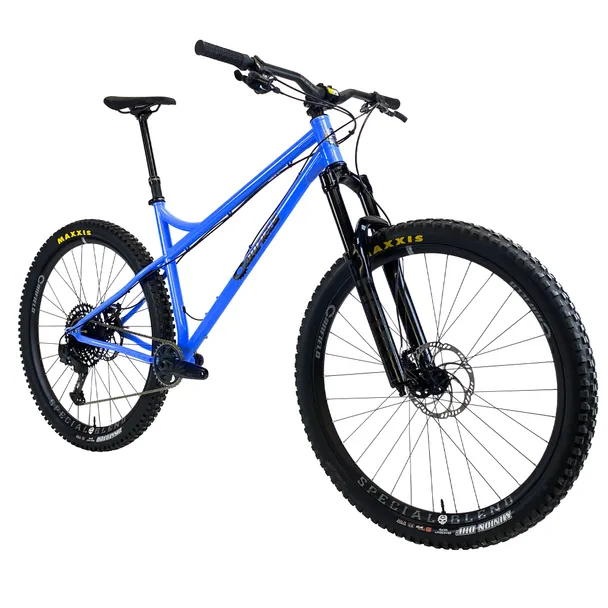

The original hardcore hardtail. Handcrafted in small batches, the Canfield Bikes Nimble 9 is a steel hardtail built to get rowdy. Combining the revered ride quality of 4130 chromoly steel with aggressive all-mountain geometry, the Nimble 9 challenges preconceptions of mountain bikes with both big wheels and rigid rear-ends.
Complete builds may take seven to 10 days to ship depending on in-stock inventory and parts availability.
CORE
PRO
Fork: Fox 36 Factory 150mm
Fork: Fox 36 Factory 150mm
Cranks: Canfield AM
Cranks: Canfield AM
Chainring: ethirteen 32t Round
Chainring: ethirteen 32t Round
Shifter: SRAM GX Eagle
Shifter: SRAM X01 Eagle
Derailleur: SRAM GX Eagle
Derailleur: SRAM X01 Eagle
Cassette: e*thirteen Helix-R 9-50t
Cassette: SRAM X01 Eagle 10-52t
Brakes: TRP Slate T4
Brakes: TRP Trail EVO
Rotors: TRP 180/160mm
Rotors: TRP 180/160mm
Wheels: e*thirteen LG1+ Enduro
Wheels: Atomik AL30
Tires: Maxxis Minion DHF 2.5 / Maxxis Dissector 2.4
Tires: Maxxis Minion DHF 2.5 / Maxxis Dissector 2.4
Seatpost: SDG Tellis
Seatpost: SDG Tellis
Saddles: Canfield SDG
Saddles: Canfield SDG
Bar: ethirteen 800mm
Bar: ethirteen 800mm
Stem: e*thirteen Base Stem 35 / 40mm
Stem: Enve Alloy MTN Stem 35 / 50mm
Grips: Lizard Skins Charger Evo
Grips: Lizard Skins Charger Evo
Seat Clamp: Canfield
Seat Clamp: Canfield
*Photos are for illustration purposes. Final production details and build spec subject to change. Full assembly required.
FRAME FEATURES
29″ All Mountain
4130 chromoly steel
Radial-bent seat stays for vertical compliance
Increased reach and shorter seat tube
66° head angle (w/ 150mm fork)
Recommended fork length: 140mm - 160mm
Custom sliding Boost 148mm x 12mm rear dropouts, axle included
73mm BSA Threaded BB
Crank Length: 155mm (SM), 160mm (MD), 165mm (LG), 170mm (XL)
30.9mm seat post
34.9 or 35mm clamp size
Adjustable 16.33“ – 16.93” chainstays
Brake mount: IS 160mm
Singlespeed-able
Stealth cable routing
Two water bottle bosses
Includes dropouts/derailleur hanger, rear axle and hardware
Max. chainring size: 34t round / 32t oval
Max. seatpost insertion: 200mm(S), 235(M), 275(L), 320(XL)
Full assembly is required on complete bikes.
Canfield Nimble 9 Geo(Based on 150mm fork, 563mm Axle to Crown)
Top Tube Length (Effective)S-570mm / M-597mm / L-625mm / XL-652mm
ReachS-425mm / M-450mm / L-475mm / XL-500mm
StackS-634mm / M-638mm / L-648mm / XL-656mm
Standover HeightS-745mm / M-780mm / L-800mm / XL-830mm
Seat Tube LengthS-370mm / M-405mm / L-445mm / XL-490mm
Wheel BaseS-1156mm / M-1183mm / L-1212mm / XL-1241mm
Head Tube AngleS-66° / M-66° / L-66° / XL-66°
Seat Tube Angle (Effective)S-77° / M-77° / L-77° / XL-77°
Chainstay LengthS-415-430mm / M-415-430mm / L-415-430mm / XL-415-430mm
Bottom Bracket HeightS-325mm / M-325mm / L-325mm / XL-325mm
Bottom Bracket DropS-50mm / M-50mm / L-50mm / XL-50mm
Head Tube LengthS-100mm / M-105mm / L-115mm / XL-125mm
SIZING
SIZE
S
M
L
XL
RIDER HEIGHT
5'2"-5'7"
5'5"-5'11"
5'9"-6'3"
6'1"-6'6"
*This size chart is only a suggestion. Every riding style and body is different.
*Photos are for illustration purposes. Final production details may vary.
