27.5" WHEELS // 169MM REAR // 170MM FRONT
Pedal. Send. Repeat. The Balance is our idea of what an all-mountain bike should be: just as capable of flagrant disregard for line choice and taking big hits in stride as it is of getting you to the top under your own power. Burly enough for bell-to-bell bike-park laps, efficient enough to earn its turns.
BUILD SPECS
Fork
RockShox Lyrik Ultimate 170mm
Shock
Fox X2
Cranks
Canfield AM 165mm
Chainring
Sram 32t round
Shifter
Sram XO1
Derailleur
Sram XO1
Cassette
Sram XO1
Brakes
Magura MT7 HC3
Rotors
Magura 180/180mm
Wheels
e*thirteen LG1+ Enduro
Tires
Maxxis Minion DHF 2.5 F/Dissector 2.4 R
Seatpost
SDG Tellis 170mm
Saddle
Canfield SDG
Bar
e*thirteen Base
Stem
Canfield Special Blend
Seatclamp
Canfield

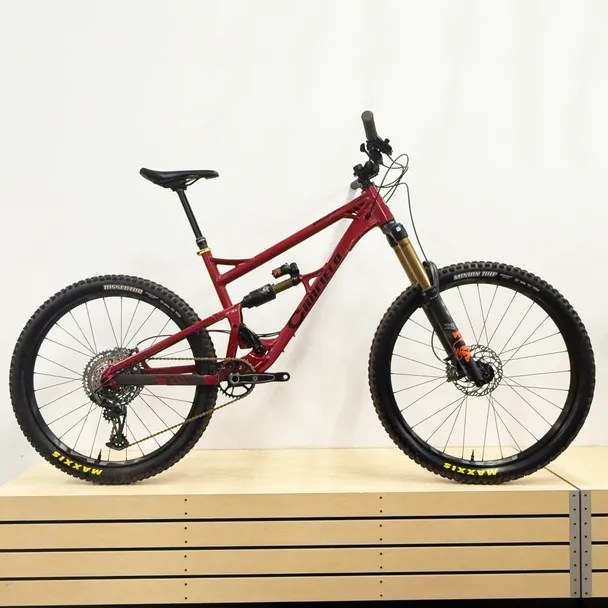

This is a used demo bike. Aside from minor scuffs and signs of use, it is in great condition and will be professionally cleaned and tuned prior to sale (please allow a few extra days for shipping). Used bikes are sold as is but are covered by our two-year factory warranty. All used bike sales are final.
FEATURES
27.5” All-Mountain / Enduro
Mullet Compatible (160mm 29" fork recommended)
7005 aluminum with CNC links
Patented Canfield Balance Formula™ Suspension
Custom Chainstay Protector
Internal Cable Routing
Tapered headtube
15mm pivot bearings (6902 Max)
Water-bottle mount
Replaceable rear derailleur hanger
Available in Small, Medium, Large and X-Large
FRAME SPECS
Shock Specs: Metric:
169mm travel: 230mm x 65mm (22mmX8mm/36mmX8mm hardware)
Recommend fork length: 170mm (160mm – 180mm acceptable range)
Headset: Tapered 44mm upper/56mm lower
Bottom bracket: 73mm BSA threaded
Seatpost: 30.9mm, stealth dropper compatible
Seatpost clamp: 35mm
Rear dropouts: Boost 148mm x 12mm, Canfield axle included
Rear tire clearance: 70mm/2.76 inches between stays
ISCG tabs: ISCG 05
Brake mount: Post 180mm
Seatpost max insertion: 205mm(S), 225mm(M), 260mm(L), 305mm(XL)
GEO & SIZING
Size
Small
Medium
Large
XLarge
Top Tube Length (Effective)
592mm
613mm
635mm
658mm
Reach
438mm
457mm
476mm
496mm
Stack
606mm
611mm
620mm
629mm
Standover Height
697mm
725mm
743mm
762mm
Seat Tube Length
380mm
410mm
450mm
490mm
Wheel Base
1190mm
1216mm
1241mm
1265mm
Head Tube Angle
64°
64°
64°
64°
Seat Tube Angle (Effective)
75.7°
75.7°
75.7°
75.5°
Seat Tube Angle (Actual)
70.3°
70.3°
70.3°
70.3°
Chainstay Length
420mm
420mm
420mm
420mm
Bottom Bracket Drop
12.4mm
12.4mm
12.4mm
12.4mm
Bottom Bracket Height (*Approximate)
343mm
343mm
343mm
343mm
Head Tube length
115mm
120mmm
130mm
140mm
*Geo based on 565mm axle to crown fork (DVO Diamond 170mm)
SIZING
SIZE
S
M
L
XL
RIDER HEIGHT
5'2"-5'7"
5'5"-5'11"
5'9"-6'3"
6'1"-6'6"
*This size chart is only a suggestion. Every riding style and body is different.
